BBC 12° Spread Port Cylinder Heads
Race Winning Performance out of the box...

• Pro-Stock Port Design promotes high intake port velocity

• 60cc Combustion Chambers allow lighter pistons, more compression and better combustion

• 12 Degree Hi-Flow Valve Angle Design

Power... We're Talking Serious Power!

That is what you get with HITMAN BBC Spread Port Cylinder Heads. Designed with a 12 degree intake valve angle, you have a lighter piston and smaller chamber resulting in better combustion.

The HITMAN 12 degree Big Block Chevy Spread Port Head takes the guess out of finding the right port for the best power. Based on our Pro-Stock port technology, our out-of-the-box port design provides better airflow than competitors larger CNC port designs, and that means INSTANT HORSEPOWER!

The HITMAN BBC Spread Port Cylinder Head has what it takes to win: 12 Degree valve angle, Spread Intake Ports, Reliable Hi-RPM Valve Train configuration, efficient intake ports, efficient combustion chamber, high-quality castings and much more.

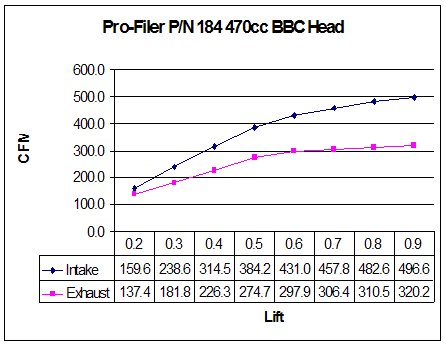

Notes: 1) Intake Valve: 2.400 2) Exhaust Valve: 1.900 3) Flowed @ 28in of water

Technical Details

Material - A356 Primary Ingot Aluminum
Valve Angle - 12 Degree
Intake Ports - 415 or 470cc
Exhaust Valve - 1.880"
Intake Valve - 2.400"
Combustion Chamber - 60cc (.005 per cc flat milling, .007 per cc angle milling)
Deck Thickness - Approx 3/4" deck for Nitrous and Blown applications
Spark Plugs - Use Gasketed 3/4" Reach Plugs
Valve Train - Uses T&D or Jessel Shaft Mounted Rocker Systems
Bore Spacing - 4.840 (Standard Big Block)
Valve Guides - Bronze
Valve Seats - Copper Alloy
Intake Port Design - Pro-Stock Modified Oval Port
Intake Manifold - Use Spread Port Tunnel Ram 187 Series
Valve Covers - Pro-Filer PN 190
Rockers - Shaft rockers (T & D, Jesel)
Valve Springs - Up to 1.660" Dia

Part NumbersSOLID Heads (No water jackets) are available for $100 extra, call for details...

211 Series BBC 12deg 415cc Spread Port Cylinder Head
	PN	Description	Price	Qty
	211-02-5	Copper Alloy Valve Seats & 5/16 Bronze Guides	$1675.00 ea
	211-02-11	Copper Alloy Valve Seats & 11/32 Bronze Guides	$1675.00 ea
	211-03-5	Valve Job with 5/16 Bronze Guides	$2250.00 ea
	211-03-11	Valve Job with 11/32 Bronze Guides	$2250.00 ea
	211-04-5	Assembled with 5/16 Bronze Guides, 3 angle valve job, Copper Alloy Seats, Victory Titanium Valves (2.400/1.880), TI Retainers, Double Roller Springs, 10 Degree Locks	$3499.00 ea
	211-04-11	Assembled with 11/32 Bronze Guides, 3 angle valve job, Steel Seats, Victory Titanium Valves (2.400/1.880), TI Retainers, Double Roller Springs, 10 Degree Locks	$3499.00 ea

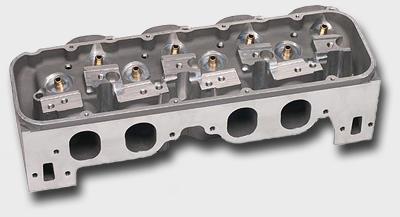

184 Series BBC 12deg 470cc Spread Port Cylinder Head
	PN	Description	Price	Qty
	184-02-5	60cc As Cast Chamber, Copper Alloy Valve Seats & 5/16 Bronze Guides	$1675.00 ea
	184-02-11	60cc As Cast Chamber, Copper Alloy Valve Seats, 5/16 intake - 11/32 exhaust Bronze Guides	$1675.00 ea
	184-02-5W	60cc As Cast Chamber, Copper Alloy 2.6/1.9 Valve Seats, 5/16 Bronze Guides	$1675.00 ea
	184-X-02-5-C62	62cc CNC Chamber, Copper Alloy Valve Seats & 5/16 Bronze Guides	$1825.00 ea
	184-X-02-11-C62	62cc CNC Chamber, Copper Alloy Valve Seats, 5/16 intake - 11/32 exhaust Bronze Guides	$1825.00 ea
	184-X-02-5-C72	72cc CNC Chamber, Copper Alloy Valve Seats & 5/16 Bronze Guides	$1825.00 ea
	184-X-02-11-C72	72cc CNC Chamber, Copper Alloy Valve Seats, 5/16 intake - 11/32 exhaust Bronze Guides	$1825.00 ea
	184-03-5	Valve Job with 5/16 Bronze Guides	$2250.00 ea
	184-03-11	Valve Job with 11/32 Bronze Guides	$2250.00 ea
	184-X-03-5-C62	62cc CNC Chamber, Valve Job with 5/16 Bronze Guides	$2400.00 ea
	184-X-03-11-C62	62cc CNC Chamber, Valve Job with 11/32 Bronze Guides	$2400.00 ea
	184-X-03-5-C72	72cc CNC Chamber, Valve Job with 5/16 Bronze Guides	$2400.00 ea
	184-X-03-11-C72	72cc CNC Chamber, Valve Job with 11/32 Bronze Guides	$2400.00 ea
	184-04-5	Assembled with 5/16 Bronze Guides, 3 angle valve job, Copper Alloy Valve Seats, Victory Titanium Valves (2.400/1.880), TI Retainers, Double Roller Springs, 10 Degree Locks	$3499.00 ea
	184-04-11	Assembled with 5/16-11/32 Bronze Guides, 3 angle valve job, Copper Alloy Valve Seats, Victory Titanium Valves (2.400/1.880), TI Retainers, Double Roller Springs, 10 Degree Locks	$3499.00 ea
	184-X-04-5-C62	62cc CNC Chamber, Assembled with 5/16 Bronze Guides, 3 angle valve job, Copper Alloy Valve Seats, Victory Titanium Valves (2.400/1.880), TI Retainers, Double Roller Springs, 10 Degree Locks	$3649.00 ea
	184-X-04-11-C62	62cc CNC Chamber, Assembled with 5/16-11/32 Bronze Guides, 3 angle valve job, Copper Alloy Valve Seats, Victory Titanium Valves (2.400/1.880), TI Retainers, Double Roller Springs, 10 Degree Locks	$3649.00 ea
	184-X-04-5-C72	72cc CNC Chamber, Assembled with 5/16 Bronze Guides, 3 angle valve job, Copper Alloy Valve Seats, Victory Titanium Valves (2.400/1.880), TI Retainers, Double Roller Springs, 10 Degree Locks	$3649.00 ea
	184-X-04-11-C72	72cc CNC Chamber, Assembled with 5/16-11/32 Bronze Guides, 3 angle valve job, Copper Alloy Valve Seats, Victory Titanium Valves (2.400/1.880), TI Retainers, Double Roller Springs, 10 Degree Locks	$3649.00 ea
184 & 211 Series Big Block Chevy Cylinder Head Accessories
	PN	Description	Price	Qty
	IR251060KF	Single Intake Gasket for 184 Series Heads Qty 2 required for new installations (replaces PN 184-IG)	$12.20 ea
	VC061094KF	Single Valve Cover Gaskets for 184 Series Heads Qty 2 required for new installations (replaces PN 184-VCG)	$13.80 ea
