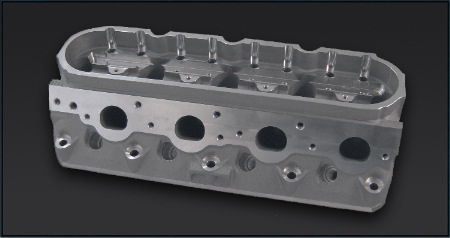

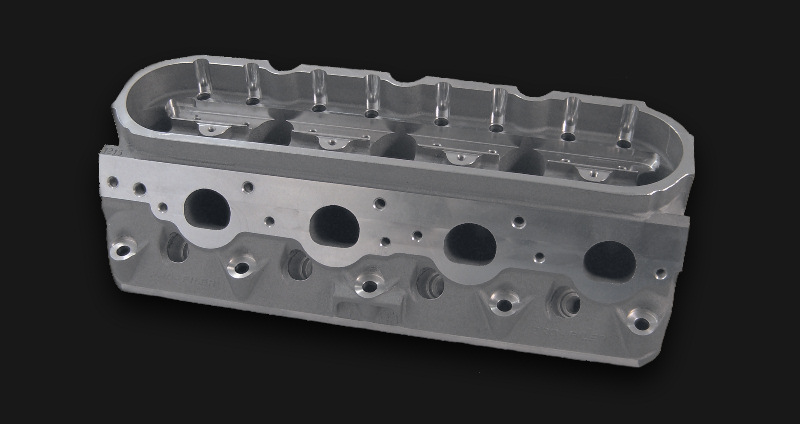

LSX Series Chevy Racing Cylinder Heads
Featuring a “no stall” port, the Pro-Filer LS Series Cylinder Head takes the airflow into uncharted territory. As we developed this head, we took the constraints of the factory design away to give you a more versatile casting so that your performance needs and desires could be met. Offered as a 215cc PRECISION As-Cast intake port, our port design provides positive airflow at .900 lift! Pro-Filer has significantly improved the rocker stand area to provide more reliability for your valve train. This upgrade allows you to increase your rpm and power while still using stock components. It also features a ½”raised valve cover rail. By choosing the Pro-Filer LS Series head you are sure to bring your engine to life. |
 |
215 Series Specifications
Valve Angle: Standard
Bore Spacing: Standard
Intake Port Volume & Shape: Cathedral-Shaped, PRECISION As-Cast 215cc
Combustion Chamber: Heart-Shaped, As-Cast - 62cc
Rocker System:Improved Solid Rocker Bar for added stability. May use standard or majority of aftermarket Rockers Exhaust Valve Diameter: 1.600"
Intake Port Flow: 308cfm,
Intake Valve Diameter: Intake - 2.020"-2.055"
Deck Thickness: 1/2"
Milling: .0050" per cc
Spark Plugs: Angled .750 Reach, Gasketed (NGK R5671A-7 or colder)
Valve Train: Standard
Valve Guides: Manganese Bronze to assist in extending valve life
Spring Pocket: Maximum of 1.250-1.440 (no deeper)
Valve Springs: Roller
Valve Seats: Steel
Valve Length: Standard on Intake & Exhaust
Valve Covers: Drilled for both, center and rail bolt
Applicattion: High Performance (i.e. street/strip/marine)
Parts and Accessories
Intake Manifold: Nitrous Express LS1 recommended (Cast by Pro-Filer)
Intake Gaskets: Standard
Exhaust Gaskets: Standard
Valve Covers: Standard
Pistons: Standard (always check valve clearance)
Rocker Systems: Standard, Jesel or T&D
Head Bolts / Studs: Standard or ARP Bolts & Studs
Block Use: Chevrolet LS1 / LS6
