Sniper Big Block Chevy
The Ultimate in BBC Conventional Port Intakes
|

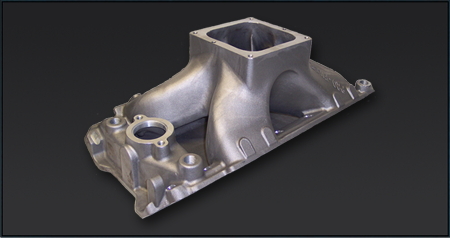

206 Series Sniper II Intake Manifold for BBC
|
The SNIPER BBC Intake Manifold Series is designed with the perfect runner to plenum volume to maximize the power and acceleration curves of your engine.
The SNIPER Series features cast injection bosses, 4500 series carburetor flange, four corner water bosses and your choice of oval or rectangle port opening.
For a combination that is unbeatable, pair the SNIPER Cylinder Head with a SNIPER Manifold and watch your competition be blown away!
ImportantFor optimum performance, Sniper & Sniper Jr. Intake Manifolds should be port matched to the heads you're bolting them to.
Tall deck models require either a slip collar distributor or a distributor designed for a Tall Deck Block. There is not enough material in the intake floor to safely machine it to use a short deck distributor.
Sniper 206 Series Intake Manifold Specifications
Deck Height :9.8" Short Deck or 10.2" Tall Deck
Overall Height: (9.8 version) - 7.4" , (10.2 version) - 7.57" China Rail to Carb Flange
Runner Location : Fits majority of BBC Stockport Cylinder Heads - Regardless of Valve Angle
Port Configuration:
RP - Machined Opening to fit Pro-Filer Sniper X Heads (rectangle port)
R - Small Port Opening - must be port matched to fit
D - Machined Opening to fit Dart 335cc and other heads with a similar port locations & openings. Note: This is an option based on a different manufacturer's specifications which may change without notice to us.
(Note: For maximum performance you need to perform finish work for a smooth transition to the head's port opening.)
