Sniper Ram BBC Tunnel Ram Intake Manifold

Products

Intake Manifolds

BBC Sniper Tunnel Ram

Sniper Ram Big Block Chevy Tunnel Ram Intake Manifold

The Newest Conventional Port Tunnel Ram Available!

RPM Range 5500-8500
Equal Radius Inlet with Mirrored Runner Arrangement for easy CNC porting
Machineable Plenum Depth
Tuned Equal Length Runners are precision cast to assure proper air flow
Available in 9.8 & 10.2 Deck Heights

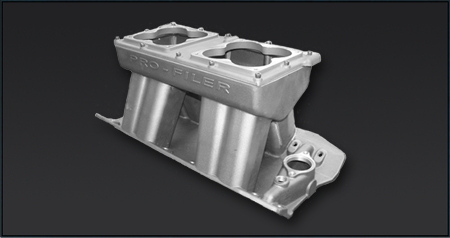

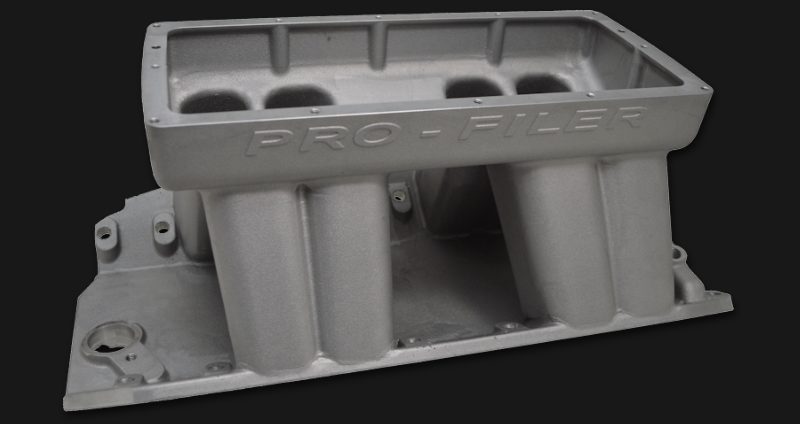

BBC Sniper Ram 216 Series Tunnel Ram Intake Manifold

216 Series Sniper Tunnel Ram Intake Manifold for BBC

The SNIPER BBC Intake Manifold Series is designed with the perfect runner to plenum volume to maximize the power and acceleration curves of your engine. The SNIPER Series features cast injection bosses, 4500 series carburetor flange, four corner water bosses and your choice of oval or rectangle port opening.

For a combination that is unbeatable, pair the SNIPER Cylinder Head with a SNIPER Manifold and watch your competition be blown away!

Ordering
Technical Details

Pro-Filer Sniper Ram
BBC Conventional Port Tunnel Ram

Available in 9.8, 10.2 and 10.3 Deck Heights with either a single or dual carb top plate.

Series 216
Price (lower casting only): $825
(OPTIONS ADDED TO BASE PRICE AT CHECKOUT)

Options
Top Plate	Deck Height

Technical Details

Material: A356 Primary Ingot Aluminum
Port Configuration: Rectangular Port
Runner Location: Fits majority of BBC Stockport Cylinder Heads, Regardless of Valve Angle
Plenum Volume - 2x4 Top: 355cc (Depth can be machined)
Plenum Volume - 1x4 Top: 384cc (Depth can be machined)
Overall Height: Tunnel Ram (9.8)- 10.25” (10.2) - 10.42”
Deck Height: 9.8" & 10.2"
Engine Size Recommendation: 565 cid or larger
