The Newest Conventional Port Tunnel Ram Available!

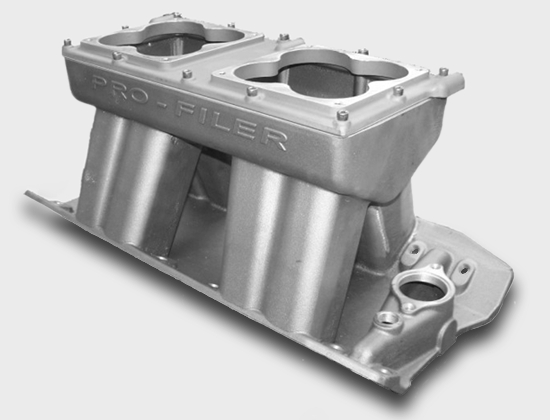

The BBC Sniper Ram intake is designed to work with stockport conventional cylinder heads like our 174 Series CNC BBC Standard Port Head.

• Optimized for engines between 502-632 cu. in.
• RPM Range 5500-8000
• Equal Radius Inlet with Mirrored Runner Arrangement for easy CNC porting
• Machineable Plenum Depth
• Tuned Equal Length Runners are precision cast to assure proper air flow
• Available in 9.8, 10.2 and 10.3 Deck Heights

Technical Details

Material: A356 Primary Ingot Aluminum

Plenum Volume: 355cc w/Dual Dominator Top, 384cc w/Single Dominator Top (Depth can be machined)

Overall Height: Height Info Pending

Deck Height: 9.8", 10.2", 10.3"

Ordering

216 Series Sniper BBC Tunnel Ram Intake (for 174 Series Heads)
	PN	Description	Price	Qty
	216-9	Sniper BBC 9.8" Short Deck Tunnel Ram Intake Manifold (Available in March)	$825.00 ea
	216-10	Sniper BBC10.2" Tall Deck Tunnel Ram Intake Manifold	$825.00 ea
	216-103	Sniper BBC 10.3" Tall Deck Tunnel Ram Intake Manifold	$825.00 ea
	189	Dual Dominator Carb Top Plate for PN 216 Tunnel Ram	$225.00 ea
	192	Single Dominator Carb Top Plate for PN 216 Tunnel Ram	$225.00 ea
		Ceramic Chrome Powder coating available via special order, call for pricing...
	Spacer Plates also Available, Please Call
216 Series Sniper Intake Manifold Accessories
	PN	Description	Price	Qty
	K-001	Top Plate Kit - Includes: Top Plate Gasket Stainless Steel Socket Head Bolts 1 Allen Wrench Tube of Silicon	$33.99 ea
	CB091060AFM	BBC Manifold Top Plate Gasket for 216 Series (replaces PN 187-TG)	$16.28 ea
	IR250060KF	Cometic Single Intake Gasket for 174 Heads - Qty 2 required for new installations (replaces PN 174-IG)	$11.66 ea
