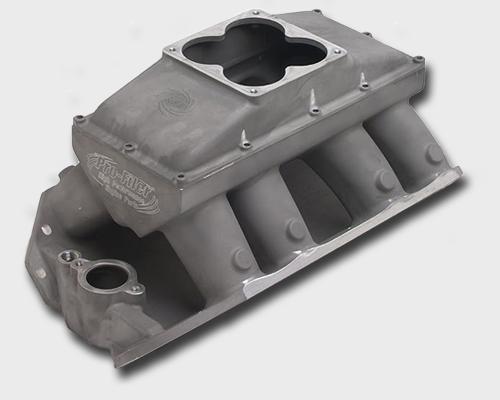

"Pro-Filer" BBC Spread Port Tunnel Ram Intake
Race Winning Performance out of the box...

• Fully Ported - As Cast Runners provide you with true "Bolt-On" Horsepower
• Cast Bosses on the runner provide an area for injection nozzles
• Engineered to match the "Pro-Filer 12 Degree Spread Port Cylinder Heads, but will also work with other aftermarket spread port heads.
• Dimensional Accuracy - consistency of the ports is far better than fabricated units.
• One-Piece construction dampens resonance, which effects high RPM horsepower
• Helps assist in making a more consisentent power curve
• Short (9.800) and Tall (10.200) deck heights available
• Available with Single or Dual Carb Top plates - Dual Carb increases 30-40 hp over Single Carb!
• Standard height, small cap distributors can be used
• Optimized for engines 632 cu.in. and larger

A match for the "Pro-Filer" BBC 184 Series SpreadPort Cylinder Head (and other aftermarket spread port heads), our cast aluminum, tunnel-ram manifold has the perfect runner/plenum volume to maximize the power and acceleration curves of your engine.

The "Pro-Filer" Spread Port Long Runner Tunnel Ram Manfiold is a replica of the manifolds used on most Pro-Stock Engines. It features precision cast runners to eliminate porting as well as the best design to eliminate air flow restrictions.

187 Series BBC Spread Port Long Runner Tunnel Ram Complete Kits
	PN	Description	Price	Qty
	187-9189	BBC 9.8" Deck Height Spread Port Manifold Includes: Tunnel Ram Manifold Dual 4 Dominator Top Plate Top Plate Kit (Gasket, Silicone, Stainless Socket Head Bolts, Allen Wrench) 1 set of Intake Gaskets Throttle Linkage	$1568.00 ea
	187-10189	BBC 10.2" Deck Height Spread Port Manifold Includes: Tunnel Ram Manifold Dual 4 Dominator Top Plate Top Plate Kit (Gasket, Silicone, Stainless Socket Head Bolts, Allen Wrench) 1 set of Intake Gaskets Throttle Linkage	$1568.00 ea

187 Series BBC Spread Port Long Runner Tunnel Ram Individual Parts
	PN	Description	Price	Qty
	187-9	BBC 9.8" Deck Height Spread Port Manifold (without top plate)	$1260.00 ea
	187-9S	BBC 9.8" Deck Height Spread Port Manifold with +.065 stock (without top plate)	$1260.00 ea
	187-10	BBC 10.2" Deck Height Spread Port Manifold (without top plate)	$1260.00 ea
	187-10S	BBC 10.2" Deck Height Spread Port Manifold with +.065 stock (without top plate)	$1260.00 ea
	189	Dual Dominator Carb Top Plate for PN 207 & 187 Series	$225.00 ea
	192	Single Dominator Carb Top Plate for PN 207 & 187 Series	$225.00 ea
187 Series Tunnel Ram Accessories
	PN	Description	Price	Qty
	K-001	Top Plate Kit - Includes: Top Plate Gasket Stainless Steel Socket Head Bolts 1 Allen Wrench Tube of Silicon	$29.99 ea
	IR251060KF	Spread Port Intake Gasket for 184 Series Heads 2 gaskets required for new installations (replaces PN 184-IG)	$12.20 ea
	CB091060AFM	BBC Manifold Top Plate Gasket for 187 and 207 Series Intake Manifolds (replaces PN 187-TG)	$12.74 ea
	Spacer Plates Available, Please Call



Pro-Filer Performance Products
PO Box 217
New Carlisle, OH 45344
937-846-1333
info@profilerperformance.com

Not legal for sale or use on pollution controlled motor vehicles
Copyright - © 2007 Pro-Filer Performance Products
